Heavy-duty shredding machines for size reduction of plastics, wood, paper, metal scrap, and electronic waste in continuous industrial operations.

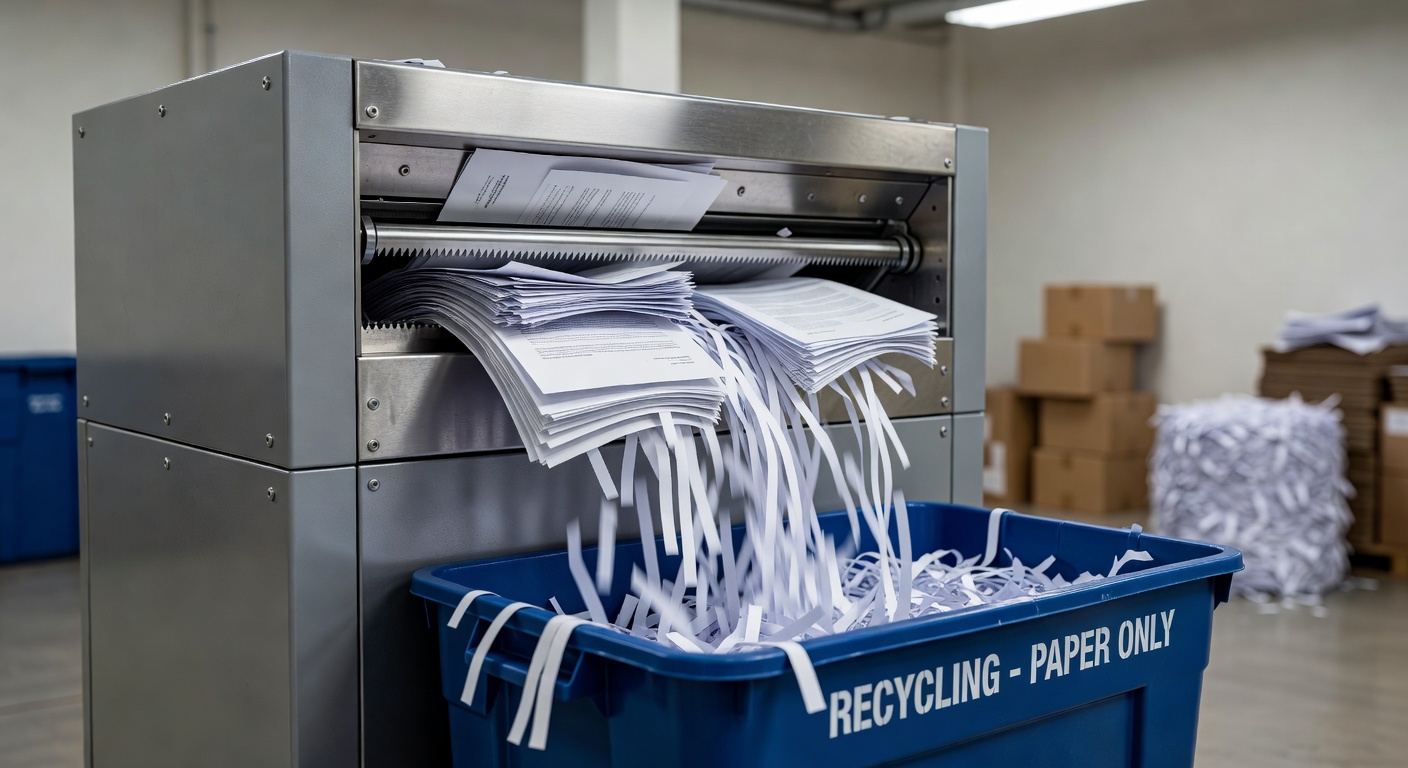

Purpose-designed machines for document-grade paper destruction, wood pallet reduction, and wood waste processing.
Standard specification ranges. Custom configurations available on request for specific material types or throughput requirements.
Suitable for rigid and semi-rigid plastics, films with carrier, and electronic housings. Rotor speed: 70–120 RPM.
| Motor Power | 11–75 kW |
|---|---|
| Rotor Width | 400–1,600 mm |
| Throughput | 200–2,000 kg/h |
| Screen Size | 10–80 mm |
| Drive | Direct / Belt |
For bulky items, thick-walled containers, mixed waste, and hard materials requiring high torque at low shaft speed.
| Motor Power | 2×15–2×90 kW |
|---|---|
| Chamber Size | 600×800–1400×2000 mm |
| Throughput | 500–5,000 kg/h |
| Shaft Speed | 15–35 RPM |
| Drive | Hydraulic / Gear |

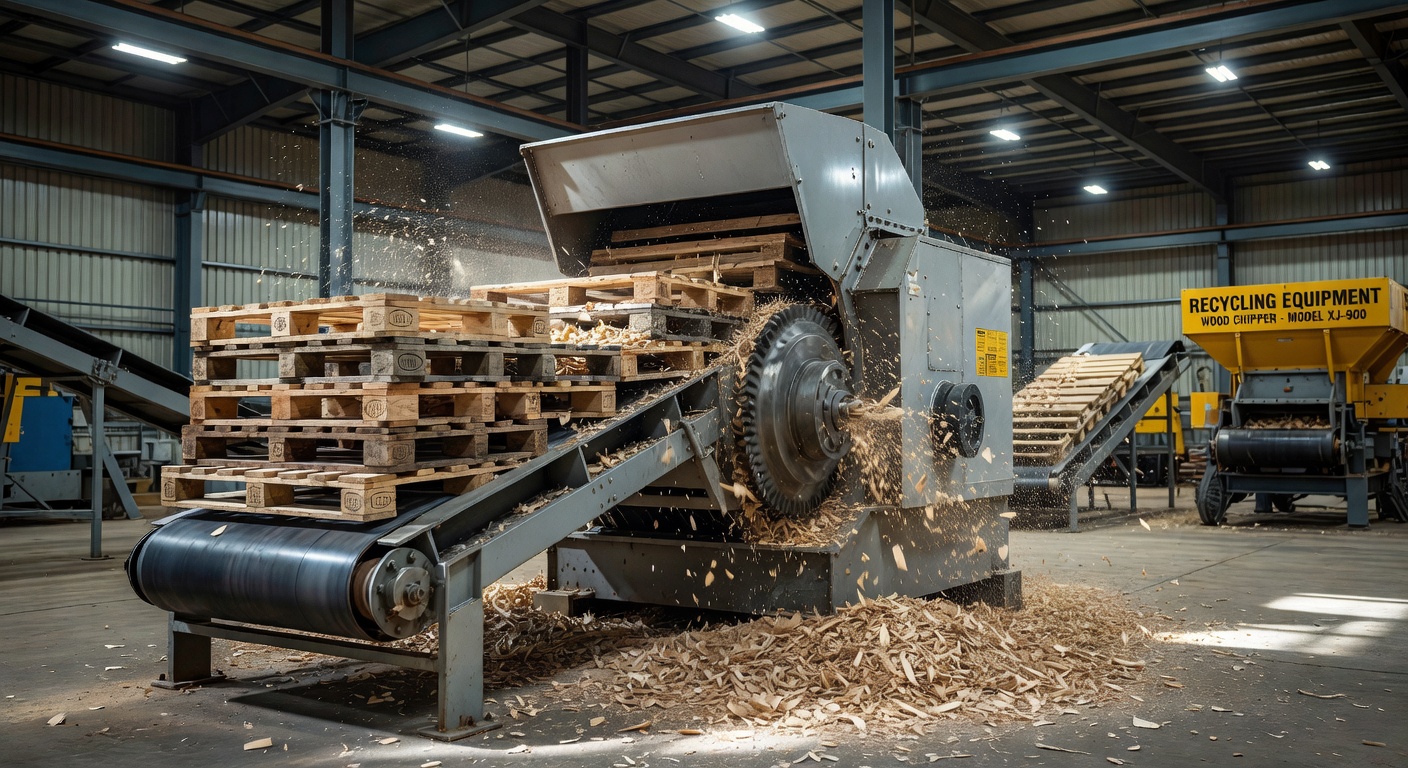

Optimised for paper bales, cardboard, timber, and pallet stock. High-speed rotor with replaceable segmented knives.
| Motor Power | 18–55 kW |
|---|---|
| Rotor Diameter | 300–600 mm |
| Throughput | 400–1,500 kg/h |
| Output Size | 20–100 mm |
| Feed Opening | 600–1,200 mm |
Structural and mechanical design choices that support long-term reliability in demanding production environments.
Individual blade segments rotate and replace without removing the full rotor assembly, reducing maintenance time.
Heavy-gauge steel frame with vibration-dampening mounts for stable operation on concrete or raised platforms.
Hydraulic or electro-mechanical reversing system activates automatically when a rotor jam or overload is detected.
Grease-packed, sealed roller bearings with labyrinth seals prevent dust and debris ingress at the rotor shaft.
