Precision size reduction equipment for plastics, glass, concrete, and mineral materials. Controlled particle output for downstream processing or re-sale.
From fine plastic regrind to coarse concrete aggregate — our crusher and granulator range covers a wide spectrum of material types.
Tangential-feed and central-feed granulators for solid plastic parts, runners, sprues, and film waste. Interchangeable screen sets for output size control.
Compact inline unit for edge trim and runner scrap. Suitable for direct connection to injection moulding lines.
| Motor | 5.5–18.5 kW |
|---|---|
| Rotor Diameter | 200–400 mm |
| Throughput | 80–600 kg/h |
| Screen Options | 3 / 5 / 8 / 12 mm |
For thick-walled parts, bottles, and large injection moulded components. Open-rotor design minimises fines generation.
| Motor | 11–55 kW |
|---|---|
| Rotor Diameter | 350–700 mm |
| Throughput | 300–2,000 kg/h |
| Screen Options | 5 / 8 / 12 / 20 mm |
Designed for stretch film, LDPE film, woven bags, and fibre material. Anti-wrap rotor prevents film wrap-around.
| Motor | 7.5–30 kW |
|---|---|
| Cutting Chamber | 500–1,000 mm wide |
| Throughput | 150–800 kg/h |
| Screen Options | 8 / 12 / 16 mm |
Heavy-duty crushing equipment for recycling demolition concrete, glass cullet, ceramic, and mineral construction waste.

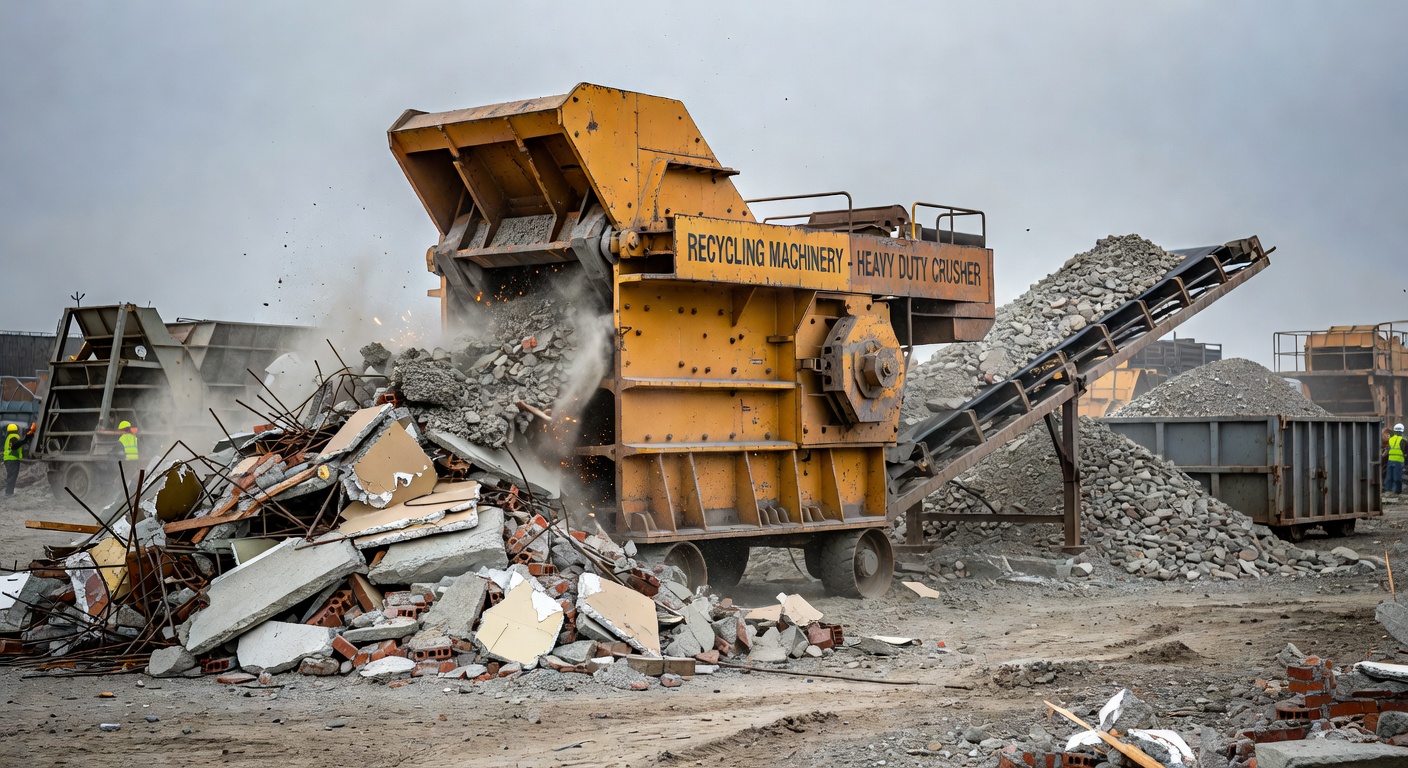

Primary reduction of concrete chunks, brick, and stone rubble. Feed size up to 400 mm, output 10–80 mm. Motor: 22–110 kW.
Secondary reduction for producing uniform aggregate. Output 5–40 mm. Adjustable impact apron for size control.

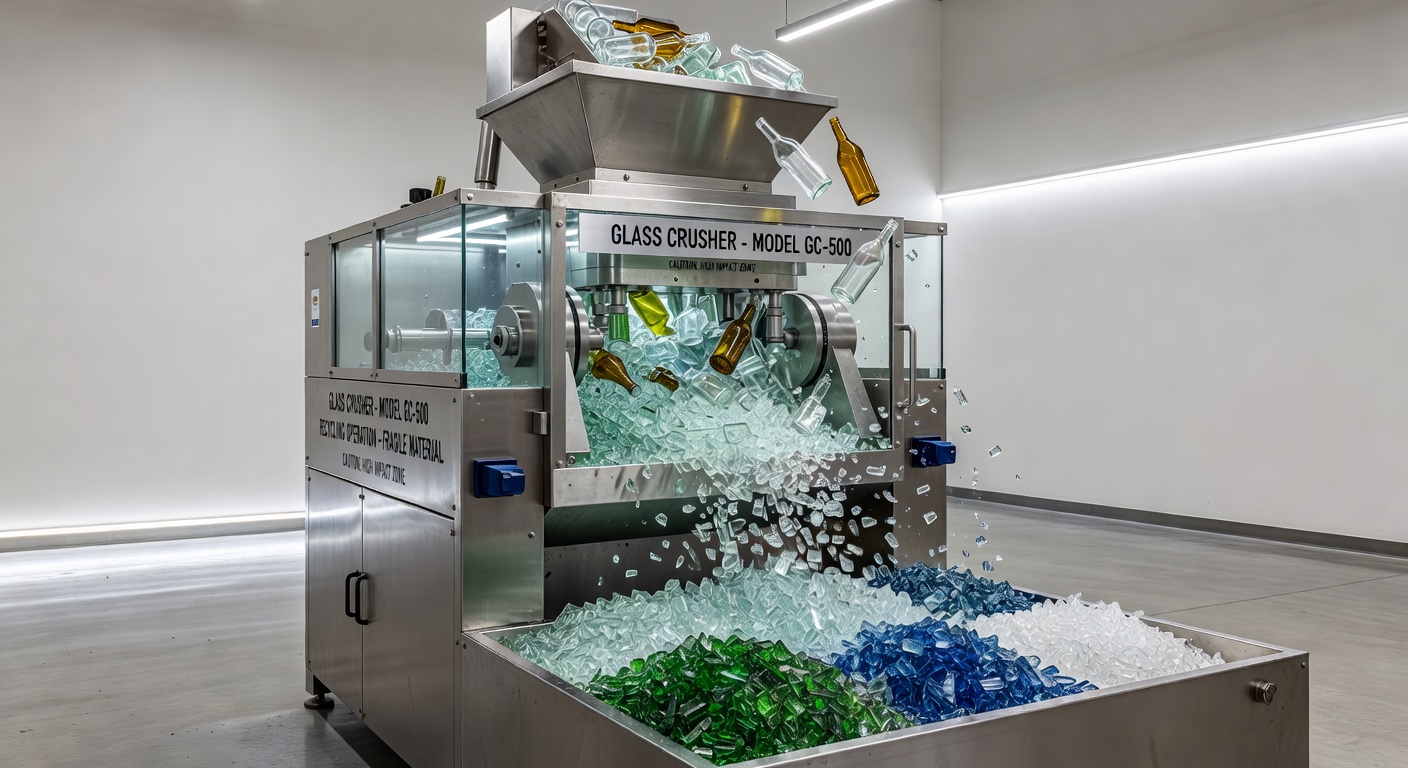

Bottle, flat glass, and container glass to cullet. Integrated dust suppression. Output 5–30 mm, capacity 200–1,500 kg/h.
Double-roll configuration for ceramic tile, brick, and slag. Low noise profile, controlled particle shape output.
